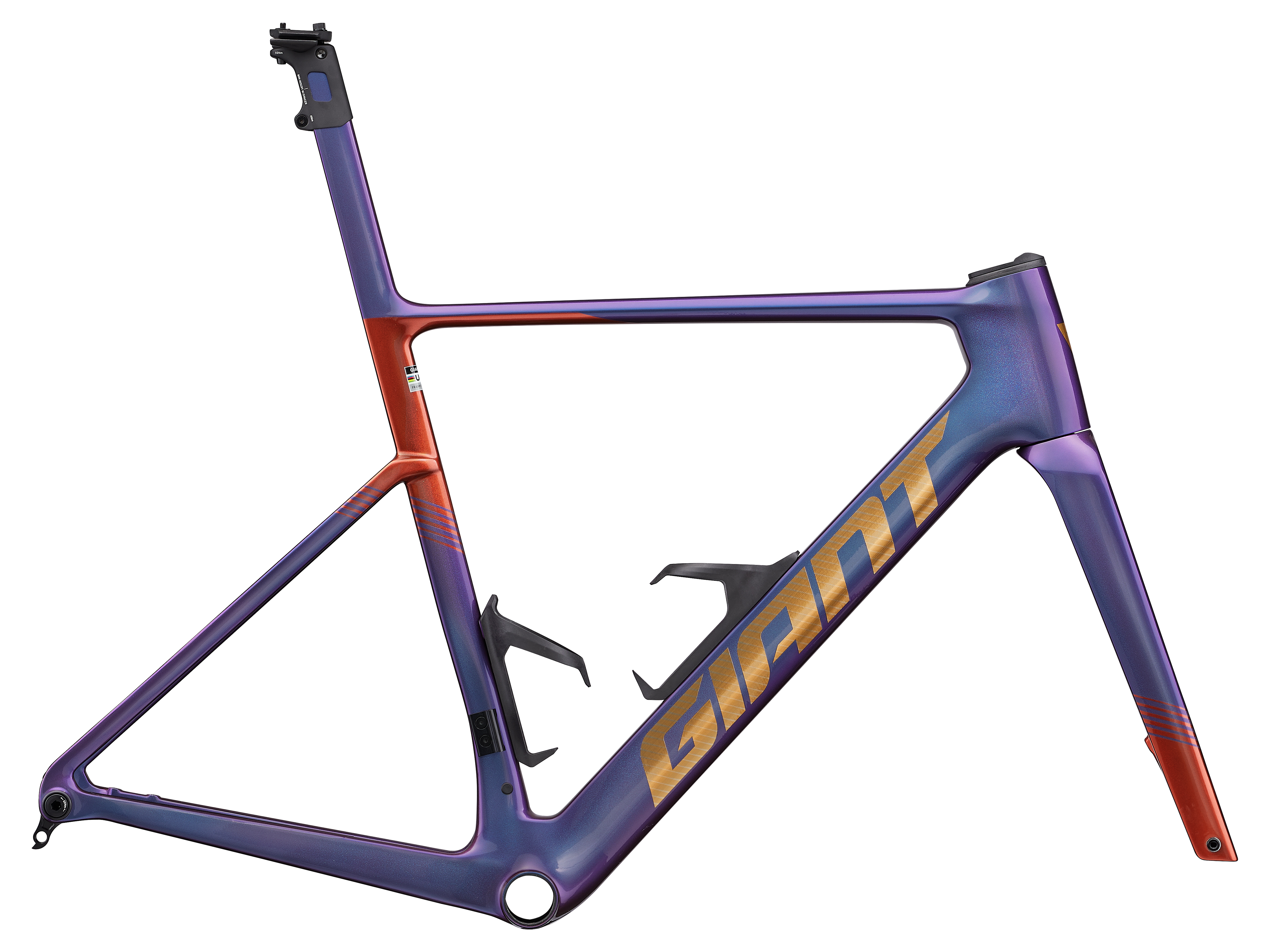

Propel Advanced SL-FF
Specs
| Frame | |
|---|---|
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Aurora Chameleon, Cyber Sunset |
| Frame | Advanced SL-grade Composite, 12x142mm thru-axle, UDH compatible, integrated seatpost, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Components | |
| Seatpost | Advanced SL-grade composite, integrated design, -5/+15mm offset |
| Drivetrain | |
| Bottom Bracket | BB86 accepts press fit style BB only, bearing set not included |
| Wheels | |
|---|---|
| Extras | Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Bottle Cages, 32mm max tyre size |
| Limits | |
| Max Tyre Clearance | 32mm |
Price: $5,499.00
Geometry
| FRAME | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Seat Tube Length (mm) (inch) | 68026.8 | 71028 | 74029.1 | 77030.3 | 80031.5 | 83032.7 |
| Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| Top Tube Length (mm) (inch) | 52020.5 | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 60023.6 |
| Head Tube Length (mm) (inch) | 1154.5 | 1275 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| Head Tube Angle (degrees) | 71.5° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| Trail (mm) (inch) | 67.82.6 | 61.42.4 | 58.32.3 | 58.32.3 | 58.32.3 | 58.32.3 |
| Wheelbase (mm) (inch) | 97138.2 | 97338.3 | 98038.6 | 99039 | 100639.6 | 102040.2 |
| Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| Bottom Bracket Drop (mm) (inch) | 722.8 | 722.8 | 69.52.7 | 69.52.7 | 672.6 | 672.6 |
| Stack (mm) (inch) | 51520.3 | 53020.9 | 54621.5 | 56522.2 | 58222.9 | 59623.5 |
| Reach (mm) (inch) | 37714.8 | 38315.1 | 38815.3 | 39215.4 | 40215.8 | 41216.2 |
| Stand Over Height (mm) (inch) | 74629.4 | 76430.1 | 78731 | 80831.8 | 83232.8 | 84733.3 |
| Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| Crank Length (mm) (inch) | 1656.5 | 1656.5 | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
