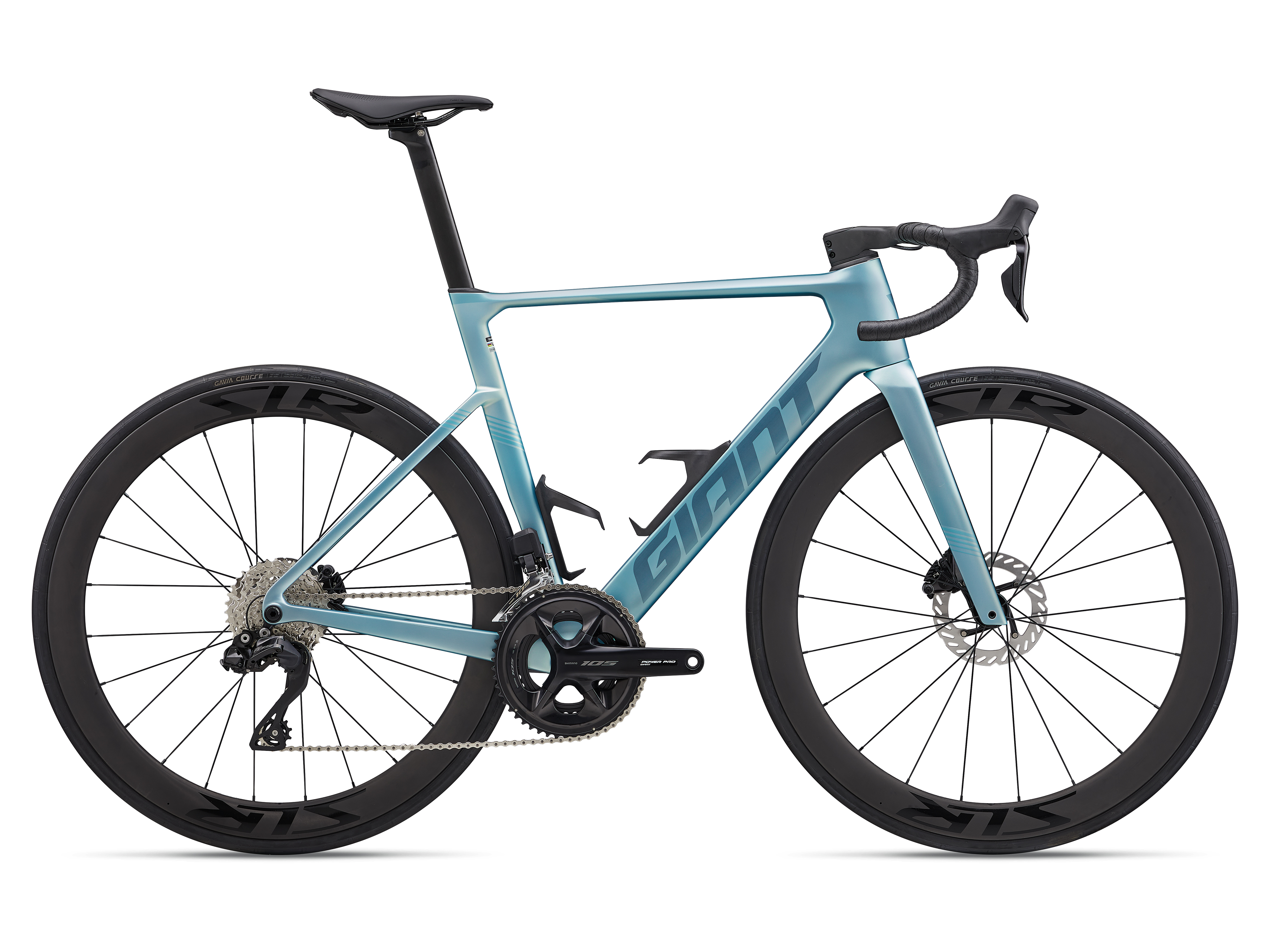

Propel Advanced Pro 1-Di2
Specs
| Frame | |
|---|---|
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Cryo Silver |
| Frame | Advanced-grade Composite, 12x142mm thru-axle, UDH compatible, integrated seatpost, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Components | |
| Handlebar | Giant Contact SLR Aero 1, one piece bar XS:36/38cm, S:36/38cm, M:37/40cm, M/L:37/40cm, L:39/42cm, XL:39/42cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SLR Aero 1, one piece bar XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Vector, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | N/A |
| Drivetrain | |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Front Derailleur | Shimano 105 Di2 FD-R7150 |
| Rear Derailleur | Shimano 105 Di2 RD-R7150 |
| Brakes | Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 hydraulic |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Wheels | |
|---|---|
| Rims | Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | Giant Gavia Course 0, tubeless, 700x28c (28mm), folding |
| Extras | Computer mount, water bottle cages, tubeless prepared, 32mm max tyre size |
| Limits | |
| Max Tyre Clearance | 32mm |
Price: $6,999.00
Geometry
| FRAME | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Seat Tube Length (mm) (inch) | 48419.1 | 50519.9 | 528.520.8 | 55421.8 | 57622.7 | 59523.4 |
| Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| Top Tube Length (mm) (inch) | 52020.5 | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 60023.6 |
| Head Tube Length (mm) (inch) | 1154.5 | 1275 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| Head Tube Angle (degrees) | 71.5° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| Trail (mm) (inch) | 67.82.6 | 61.42.4 | 58.32.3 | 58.32.3 | 58.32.3 | 58.32.3 |
| Wheelbase (mm) (inch) | 97138.2 | 97338.3 | 98038.6 | 99039 | 100639.6 | 102040.2 |
| Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| Bottom Bracket Drop (mm) (inch) | 722.8 | 722.8 | 69.52.7 | 69.52.7 | 672.6 | 672.6 |
| Stack (mm) (inch) | 51520.3 | 53020.9 | 54621.5 | 56522.2 | 58222.9 | 59623.5 |
| Reach (mm) (inch) | 37714.8 | 38315.1 | 38815.3 | 39215.4 | 40215.8 | 41216.2 |
| Stand Over Height (mm) (inch) | 74629.4 | 76430.1 | 78731 | 80831.8 | 83232.8 | 84733.3 |
| Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| Crank Length (mm) (inch) | 1656.5 | 1656.5 | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
